Liverpool's ground conditions shift dramatically between the sandstone ridge of the Georgian Quarter and the soft alluvial deposits of the Wirral shoreline. A site near the Albert Dock can sit on up to 15 metres of soft estuarine clays, while a few miles inland at Childwall the underlying Bunter Sandstone may be within five metres of the surface. Electrical resistivity profiling and Vertical Electrical Sounding (VES) provide a non-invasive way to map these lateral and vertical changes without mobilising a drill rig. The technique is particularly valuable for detecting buried channels, assessing depth to rockhead, and locating perched water tables before intrusive work begins. For projects across the city, from the Knowledge Quarter to the Northern Docks, this geophysical data helps engineers design ground investigations that target the most critical zones.
Two-dimensional ERT profiles across Everton identified a 12-metre buried valley of soft clay and peat, directing intrusive sampling to critical zones.
Process overview
A recent mixed-use development on the old Everton Toffee factory site required ground investigation across 1.2 hectares of variable fill over glacial till. The client needed a rapid, non-intrusive method to identify zones of deep made ground before committing to a full drilling programme. We deployed 2D electrical resistivity tomography (ERT) along six parallel lines, combined with four VES soundings using Schlumberger arrays with AB/2 spacings up to 100 metres. The survey successfully delineated a buried valley filled with soft clay and peat up to 12 metres deep, which was then targeted with calicatas exploratorias for direct sampling. In areas where the resistivity profiles indicated competent sandstone within 6 metres, the team proceeded with ensayo SPT to confirm bearing capacity for shallow foundations. The approach saved the client roughly 30% on intrusive drilling costs while providing continuous subsurface coverage that boreholes alone could not achieve.

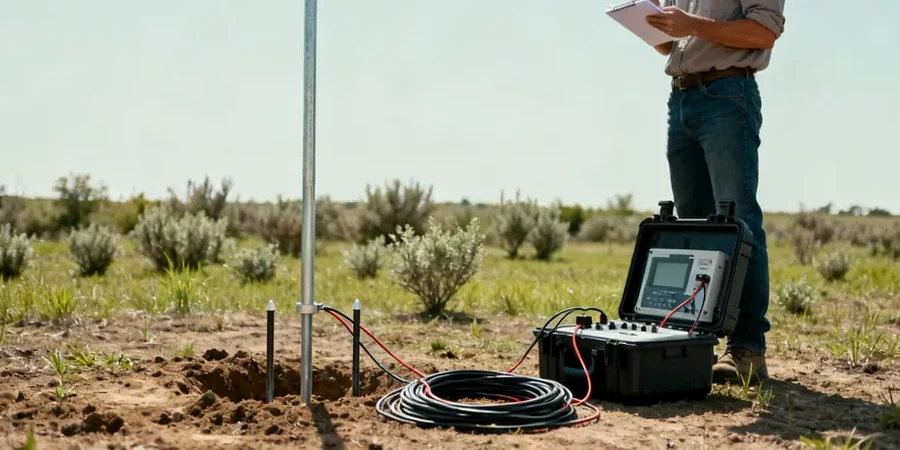

Technical reference image — Liverpool
Local context
In Liverpool, the most common pitfall we see is assuming the Merseyside Sandstone is uniform across a site. Many historic maps show rockhead contours, but these often miss buried channels carved by glacial meltwater. A VES survey can miss these if the electrode spread is too short. We always recommend extending AB/2 to at least 80 metres in this region, even for a small site, otherwise a deep clay-filled channel can be misread as low-grade sandstone. Another issue is high surface resistivity from asphalt or concrete slabs, which masks deeper layers. We address this by using capacitive coupling or by placing electrodes in shallow augered holes.
Schlumberger and Wenner soundings for depth-to-rockhead, groundwater depth, and layer resistivity. AB/2 up to 100 m. Ideal for foundation design and quarry assessments.
02
2D Electrical Resistivity Tomography (ERT)
Multi-electrode profiles (up to 72 electrodes) for mapping lateral variability, buried channels, and contamination plumes. Data inverted to produce colour resistivity sections with depth.
03
Resistivity Monitoring
Time-lapse surveys for tracking moisture changes, leachate migration, or grout penetration. Repeat measurements at weekly or monthly intervals to monitor change over time.
04
Integrated Geophysical Interpretation
Combined resistivity with MASW or GPR for a multi-method ground model. Our reports include interpreted cross-sections, contour plans, and recommendations for intrusive follow-up.
This service complements our laboratory testing work for a complete project analysis.
Relevant standards
BS 5930:2015 (Code of practice for ground investigations), BS EN 1997-1:2004 (Eurocode 7 — Geotechnical design, General rules), BS 1377 (Standard guide for using the direct current resistivity method)
Common questions
How deep can a VES survey reach in Liverpool's sandstone?
With an AB/2 spacing of 100 metres, VES can resolve layers down to 30-40 metres in the Bunter Sandstone, depending on the resistivity contrast. In the softer Mercia Mudstone areas the depth may reduce to 25 metres due to lower resistivity values.
What is the difference between VES and 2D ERT?
VES is a 1D sounding — it measures resistivity variation with depth at a single point using expanding electrode spreads. 2D ERT uses a multi-electrode array along a profile line to produce a continuous cross-section of both lateral and vertical changes. ERT is better for mapping complex geology like buried channels or fault zones.
Can electrical resistivity detect groundwater in Liverpool?
Yes — saturated ground typically shows resistivity below 50 ohm-metres, while dry sandstone can exceed 500 ohm-metres. The contrast is strong enough to map the water table, especially in the sandstone aquifers beneath the city centre. However, high salinity in estuarine clays near the docks can mask the signal.
How much does an electrical resistivity survey cost in Liverpool?
A typical VES survey for a single residential plot starts around £440, while a full 2D ERT profile across a medium-sized development site (200-400 linear metres) ranges between £650 and £870. These prices include mobilisation, data acquisition, inversion, and a basic interpretative report. Larger surveys or complex multi-line work will be quoted based on site access and line length.
