Liverpool's underlying geology is dominated by the Sherwood Sandstone Group and Mercia Mudstone, which weather into heterogeneous residual soils with highly variable clay and sand fractions. Unlike transported deposits, these soils retain the parent rock's structural fabric, meaning their engineering behaviour — particularly in terms of collapse potential and strength anisotropy — can shift dramatically over short distances. For any earthworks or foundation project in Liverpool, a thorough residual soil characterization is essential to map these lateral variations and avoid unexpected settlement or bearing capacity failures. We routinely combine index testing with advanced triaxial and oedometer work to capture the full mechanical response of these weathered profiles.
Residual soils in Liverpool preserve the structural fabric of the parent sandstone, creating collapse potential and strength anisotropy that standard classification alone cannot detect.
Process overview
Our laboratory setup in Liverpool includes automated triaxial systems capable of drained and undrained cycles on undisturbed block samples, plus a bank of fixed-ring oedometers for consolidation testing at incremental loads up to 1600 kPa. We follow BS 1377-2 for classification and BS 1377-7:1990 for shear strength, ensuring every result is traceable. When the residual soil contains relict discontinuities from the parent sandstone, we complement the characterization with a corte directo program to isolate shear planes along those pre-existing weaknesses. For projects where collapse upon wetting is a concern — common in Liverpool's drier upper horizons — we run double-oedometer collapse tests alongside permeabilidad-campo to quantify infiltration rates under service loads.

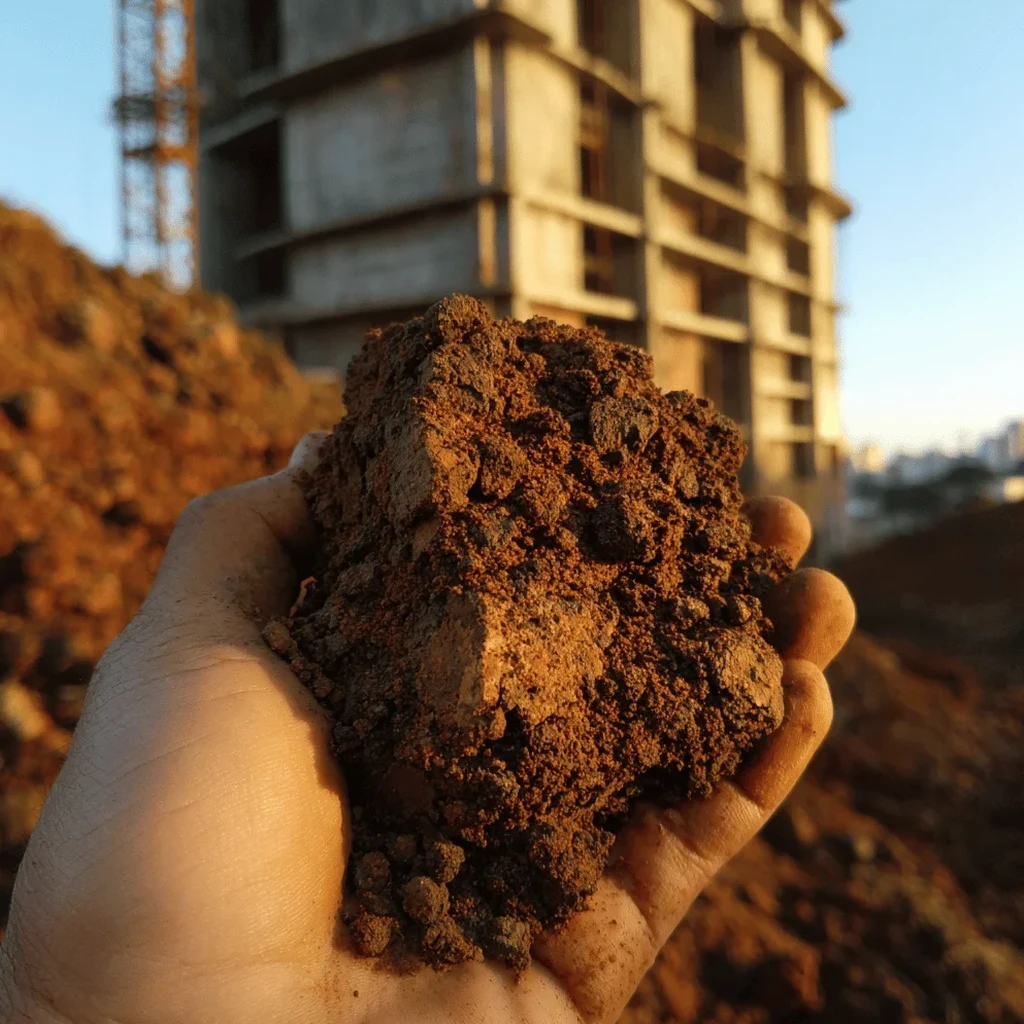

Technical reference image — Liverpool
Local context
Liverpool's maritime climate drives wet-dry cycles that exacerbate the collapse behaviour of its residual soils — a risk often missed by routine classification. During prolonged dry spells the upper horizons desiccate and lose matric suction, and when heavy autumn rains return, the same soils can undergo rapid, differential settlement under foundation loads. We have seen cases in the Wirral and eastern suburbs where ignoring this seasonal collapse led to cracking in load-bearing walls and slab-on-grade floors. Our characterization protocol specifically includes suction measurements and collapse index tests to flag these zones before construction starts, saving clients from expensive retrofits.
Natural moisture content, Atterberg limits, particle size distribution (wet sieving + hydrometer), shrinkage limits, and specific gravity — all per BS 1377-2.
02
Consolidation & Collapse Assessment
Oedometer tests with incremental loading up to 1600 kPa, including double-oedometer collapse index for identifying metastable structures in Liverpool's residual profiles.
03
Triaxial Strength Characterization
UU, CU, and CD triaxial tests on undisturbed samples, with pore pressure measurement and stress-path control for design parameters in slope stability and foundation design.
04
Suction & Moisture Regime Analysis
Filter paper and tensiometer suction measurements, coupled with wetting/drying cycles, to quantify seasonal moisture effects on shear strength and collapse potential.
What makes residual soil characterization different from standard soil testing?
Residual soils retain the structural fabric of their parent rock, so standard index tests alone cannot predict collapse potential or strength anisotropy. We combine classification with triaxial, oedometer, and suction measurements specific to Liverpool's Sherwood Sandstone and Mercia Mudstone weathering profiles.
How much does residual soil characterization cost in Liverpool?
Depending on the number of samples and test suite, costs typically range from £660 to £2,230. This includes index testing, one oedometer stage, and a set of triaxial cells. Complex profiles requiring multiple collapse tests or suction cycles sit at the upper end.
Which British standards apply to residual soil testing?
We follow BS 1377-2 for classification, BS 1377-7 for shear strength, and BS 5930:2015 for site investigation guidance. All work is conducted under UKAS accreditation with full traceability to Eurocode 7 (BS EN 1997-2).
How long does a full characterization program take?
A standard suite for six samples — including classification, consolidation, and triaxial testing — takes 10 to 14 working days. If collapse index or suction cycles are required, add 3 to 5 days. We coordinate sampling schedules with your site team to minimize delays.
