Liverpool's urban expansion since the 18th century has shaped a complex subsurface, with made ground overlying glacial till and laminated clays. The city's docklands and Victorian infrastructure sit on materials that require precise characterisation. For any deep excavation or foundation design, the triaxial test provides the undrained and drained strength parameters essential for safe bearing capacity and slope assessments. Before specifying a retaining wall or pile group, we run consolidated undrained (CU) and unconsolidated undrained (UU) triaxial tests on undisturbed samples. This data feeds directly into limit equilibrium and finite element models, reducing the risk of underestimating shear strength in Liverpool's variable ground conditions.
In Liverpool's saturated glacio-lacustrine clays, the triaxial test's pore pressure measurement is the difference between a safe foundation and a progressive failure.
Process overview
Liverpool sits at sea level with a tidal Mersey influence, meaning much of its subgrade is saturated. The triaxial test measures pore pressure response during shearing, a critical parameter for effective stress analysis. We follow BS 1377-8:1990 and BS 1377-8, testing specimens 38 mm or 50 mm in diameter at confining pressures matching in-situ vertical stress. Key outputs include cohesion (c'), friction angle (phi'), and the Skempton pore pressure coefficient A. These feed into foundation design and are often paired with a corte directo for granular fills or a placa de carga to verify stiffness on compacted layers. For multi-storey projects on the waterfront, we also run cyclic triaxial tests to simulate wave loading effects on the laminated clay formations.

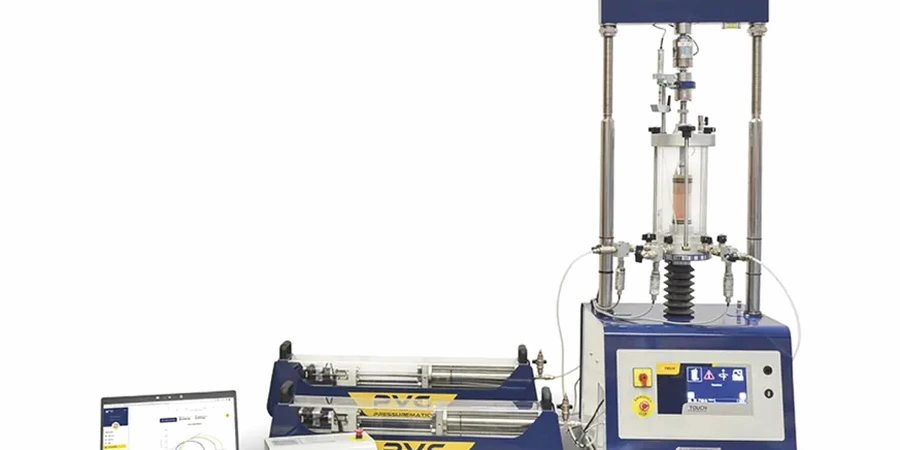

Technical reference image — Liverpool
Local context
A nine-storey residential block on Liverpool's Water Street was designed using only SPT-based correlations for clay. The contractor hit a buried channel of soft laminated clay at 6 m depth. Without triaxial test data, the design assumed a uniform undrained shear strength of 80 kPa. Actual CU triaxial results on undisturbed samples gave 45 kPa. The difference forced a redesign from shallow footings to a piled raft, adding £280,000 to the project and a 5-week delay. That one omission showed how relying on empirical correlations in Liverpool's glaciated terrain can misrepresent real ground behaviour.
For limited sample availability, we run multi-stage UU or CU tests on a single specimen at three confining pressures (100, 200, 400 kPa). This method halves the sample quantity needed and is ideal for Liverpool's laminated clays where borehole recovery is low. Output includes Mohr-Coulomb failure envelope and stress-strain curves.
02
Cyclic Triaxial Test
Simulates repeated loading from tides, traffic, or cranes in Liverpool's docklands. We apply up to 10,000 cycles at frequencies from 0.1 to 2 Hz. The test measures degradation modulus and pore pressure build-up, critical for fatigue assessment of quay walls and crane foundations.
Relevant standards
BS 1377-8:1990 — Methods of test for soils: Shear strength (triaxial), BS 1377-8 — Consolidated undrained triaxial compression test for cohesive soils, Eurocode 7 (EN 1997-1:2004) — Geotechnical design: limit state approach, BS 5930:2015 — Code of practice for ground investigations
Common questions
How much does a triaxial test cost in Liverpool?
A standard UU triaxial test on a single specimen ranges from £1,490 to £2,230 depending on the confining pressures and reporting detail. CU tests with pore pressure measurement are at the upper end. Multi-stage and cyclic variants carry a surcharge for extended machine time. We provide a fixed quote after reviewing sample condition and required standards.
What is the difference between UU and CU triaxial tests?
UU (unconsolidated undrained) tests shear the sample without drainage, giving total stress parameters (Su) — suitable for short-term stability in Liverpool's saturated clays. CU (consolidated undrained) tests consolidate the sample under confining stress before shearing, measuring pore pressure to derive effective stress parameters (c', phi'). CU is required for long-term drained analysis under Eurocode 7.
When should I request a cyclic triaxial test instead of a static one?
Specify a cyclic triaxial test when your structure experiences repeated loading: crane runways, quay walls subject to tidal surge, rail embankments, or wind turbine foundations. Static tests give peak strength for one-off loads; cyclic tests quantify stiffness degradation and liquefaction potential under fatigue. Liverpool's docklands and port infrastructure projects routinely require cyclic data.
How long does a triaxial test take in your lab?
A UU test takes 2–3 working days from sample arrival. CU tests require 5–7 days due to consolidation stages. Cyclic tests can take 10–15 days depending on the number of cycles. We prioritise Liverpool samples with a 48-hour express service for UU when project deadlines are tight.
