The soft estuarine and glacial till deposits underlying much of Liverpool's waterfront and inner suburbs present a particular challenge for geotechnical design. Unlike the stiff boulder clays found further inland, the alluvial silts and soft clays along the Mersey basin exhibit low undrained shear strength (cu) and high sensitivity, conditions that can lead to bearing capacity failures or excessive settlement if not quantified correctly. In these ground conditions, the field vane shear test (VST) remains the most direct and cost-effective method for measuring peak and remoulded shear strength in situ, providing data that laboratory triaxial tests on undisturbed samples simply cannot replicate due to unavoidable sample disturbance. Before relying on VST results for foundation design, many engineers working in Liverpool also cross-reference findings with a consolidation test to estimate the rate of settlement under working loads, particularly where fill sequences or embankments are planned over the soft clay horizons that characterise areas such as Toxteth, Bootle, and the Wirral approaches.
The field vane shear test remains the only in-situ method that directly measures remoulded shear strength, a critical parameter for assessing liquefaction triggering in sensitive clays.
Process overview
A typical VST deployment in Liverpool begins with advancing a borehole to the target depth using a light cable-percussion rig, then inserting the four-bladed vane into the undisturbed soil. The vane is rotated at a controlled rate of 6° to 12° per minute until failure, recording the peak torque. A second rotation immediately after measures the remoulded strength, yielding the sensitivity ratio. The equipment must comply with BS 1377-9:1990, which specifies vane dimensions (H/D = 2), rod friction correction, and rotation speed tolerances. Key operational steps include:
Borehole advancement with minimal base disturbance – crucial in Liverpool's laminated clays where thin silt partings can affect drainage
Vane insertion a minimum of 0.5 m below the borehole base to avoid disturbed zone
Torque measurement via calibrated spring or electronic load cell, recording at 0.5° increments
Correction for rod friction using a dummy vane run or by subtracting the torque measured with the vane removed
For projects requiring deeper profiles or where continuous strength logs are needed, the VST is often combined with cone penetration testing to correlate peak torque with cone tip resistance across the Merseyside soil column.

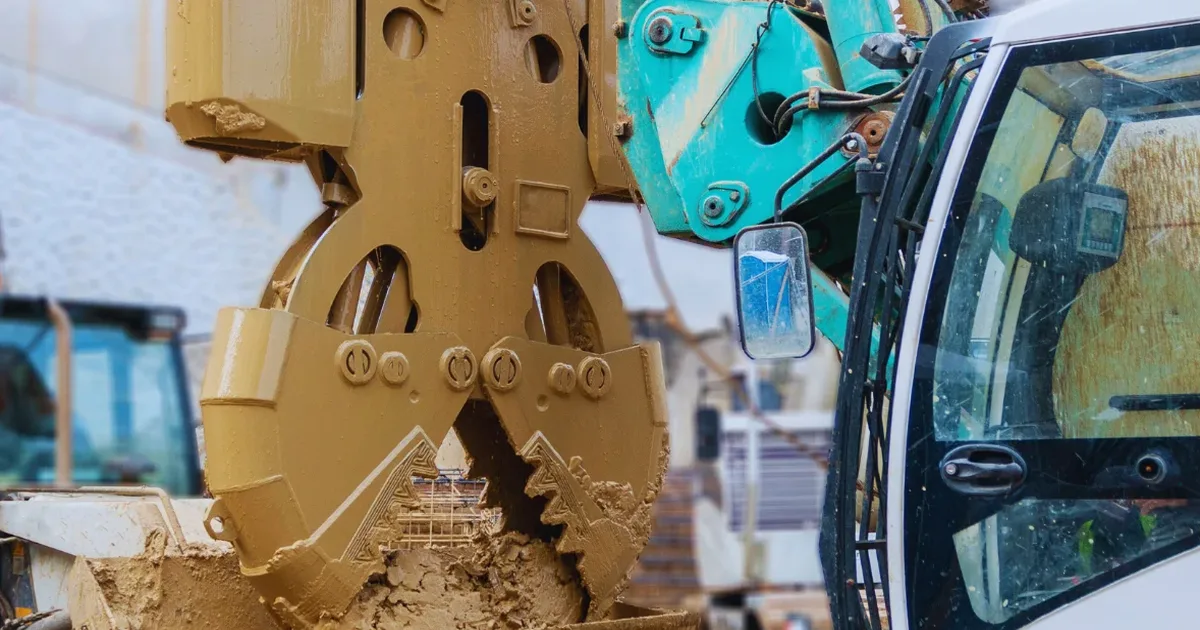

Technical reference image — Liverpool
Local context
Liverpool's ground conditions are dominated by the Liverpool Bay Formation and the late-glacial laminated clays of the Mersey valley, which exhibit high natural water content (40–70%) and sensitivity values between 4 and 10. These clays are prone to progressive failure under undrained conditions, meaning the peak strength measured by a VST can degrade rapidly if the soil is subjected to cyclic loading from piling or excavation. The most common risk in Liverpool is the misinterpretation of remoulded strength for long-term stability analyses – using the peak cu for an embankment foundation when the soil will actually experience strain-softening over the design life. In addition, the presence of thin sand/silt layers within the laminated sequence can create false high readings if the vane intersects a granular seam, leading to unconservative design unless the operator logs the soil carefully during vane insertion. A complementary subgrade reaction modulus test is often recommended for road and pavement projects in Liverpool where the VST data must be converted into an equivalent CBR for flexible pavement design.
75 mm × 37.5 mm (standard) or 130 mm × 65 mm (soft clays)
Rotation rate
6°–12° per minute (BS 1377-9)
Peak torque range
0.1–200 N·m
Sensitivity (St) range
2–8 for Liverpool soft clays; >8 indicates quick clay potential
Depth capability
Typically 0.5–30 m below ground level via borehole
Undrained shear strength (cu)
5–80 kPa for Liverpool alluvial deposits
Additional services
01
Standard VST Profiling (Borehole-based)
Vane shear tests at 1.0 m intervals within NX-size boreholes, including peak and remoulded torque measurement. Suitable for embankment design, slope stability, and foundation bearing capacity assessments in Liverpool's soft clay deposits. Results reported with full rod friction correction and sensitivity ratio.
02
High-Resolution VST for Sensitive Clays
Extended vane geometry (130 mm × 65 mm) and slower rotation rates (6°/min) for very soft clays with cu < 20 kPa. Includes cyclic vane testing to evaluate strength loss under repeated loading, critical for port infrastructure and quay walls in the Liverpool Docks area.
03
VST for Slope Stability and Landslide Assessment
Targeted vane tests along suspected shear surfaces in natural slopes or cuttings. Combines peak and remoulded strength data with inclinometer monitoring to back-analyse failure mechanisms. Ideal for the weathered glacial till slopes found in parts of Woolton and Childwall.
This service complements our laboratory testing work for a complete project analysis.
Relevant standards
BS 1377-9:1990 – Methods of test for soils: in-situ shear strength tests (vane shear), Eurocode 7 (EN 1997-1:2004) – Geotechnical design, particularly clause 6.5 for undrained conditions, BS 1377-9 – Standard test method for field vane shear test in saturated fine-grained soils, CIRIA C760 – Guidance on the use of the field vane in UK practice
Common questions
How does the field vane shear test differ from a laboratory triaxial test for Liverpool clays?
The VST measures undrained shear strength in situ without the sample disturbance that inevitably occurs during extraction, transport, and trimming of soft clay samples. For Liverpool's sensitive laminated clays, lab triaxial tests often underestimate peak cu by 20–40% due to destructuring. The VST also directly measures remoulded strength, which is essential for sensitivity assessment – a parameter that cannot be obtained from triaxial testing.
What is the typical cost range for a field vane shear test in Liverpool?
For a standard VST profile including mobilisation, borehole advancement, and testing at five depth points, the cost typically ranges between £470 and £1,290. This depends on site access, depth of testing, and whether a tracked or hand-portable rig is required. Additional depth points or cyclic testing may increase the total.
Can the VST be used in Liverpool sands or gravels?
No, the field vane shear test is only valid in fine-grained soils where drainage is negligible during the test. Liverpool's glacial sands and gravels (e.g., the Shirdley Hill Sand Formation) drain too quickly, and the vane would measure drained or partially drained shear resistance, invalidating the undrained assumption. For those materials, a standard penetration test (SPT) or cone penetration test (CPT) is more appropriate.
What corrections should be applied to VST data from Liverpool's laminated clays?
The primary corrections are: (1) rod friction – subtract the torque measured with the vane removed at the same depth; (2) vane insertion disturbance – the first 0.5 m of advance below the borehole base should be discarded; (3) vane shape factor – use Bjerrum's correction (mu = 0.7–1.0) for design of foundations in sensitive clays. For Liverpool's laminated deposits, a mu of 0.85 is commonly adopted based on local back-analysis of case histories.
