On site in Liverpool we often bring in a CFA rig with a 600 mm diameter auger to reach the competent sandstone of the Woolton Formation, which sits below 8–12 m of glacial till and alluvial clay. The Mersey basin geology demands careful pile foundation design because the lateral variability of the till can hide cobble layers that stall driven piles. Before we finalise any design we run a calicatas exploratorias campaign to confirm the soil profile across the footprint, then correlate that with SPT N-values from the deeper boreholes. This phased investigation prevents costly redesigns when unexpected boulders appear at 6 m depth, a common issue in the Everton Heights area.
The lateral variability of glacial till in Liverpool can hide cobble layers that stall driven piles, making CFA rigs the safer choice.
Process overview
One thing we see repeatedly in Liverpool is the contrast between the firm glacial till under the city centre and the soft alluvium along the waterfront. For a recent development on King Edward Street we had to transition from driven precast piles to continuous flight auger (CFA) piles because the driving refusal at 9 m was too shallow for the required 1,500 kN working load. Pile foundation design for sites near the Leeds-Liverpool Canal must also account for variable groundwater levels that can reduce shaft friction in the upper 4 m. We always integrate ensayo SPT data at 1.5 m intervals and cross-check with ensayo CPT soundings to map the strength transition zone, ensuring the pile toe reaches a stratum with consistent bearing capacity.

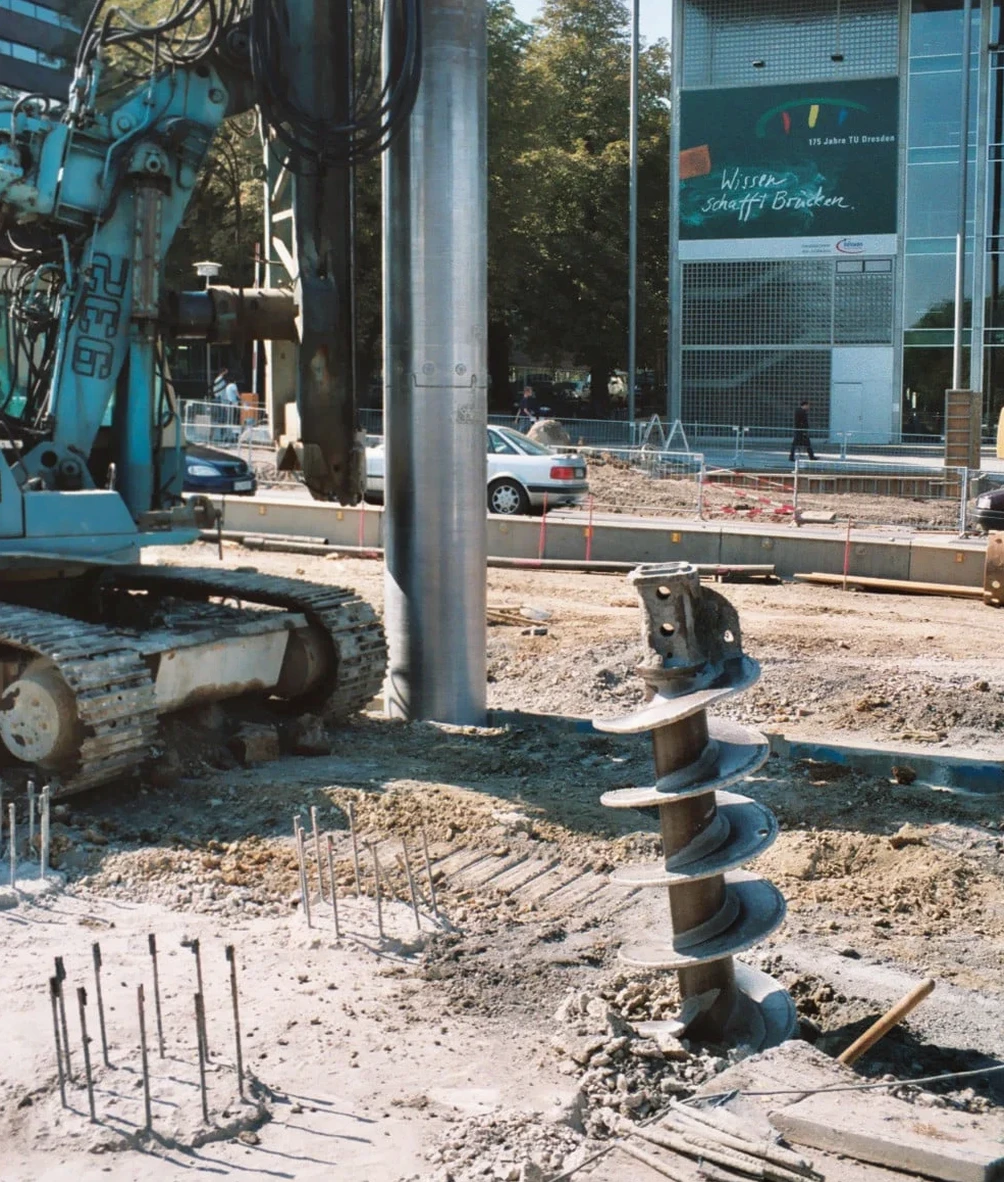

Technical reference image — Liverpool
Local context
Liverpool sits on a mix of glacially overconsolidated clays and fluvial sands, with the Mersey estuary creating a high water table that fluctuates with tides. At the Liverpool Waters site, a 12-storey residential tower required pile foundation design capable of resisting uplift from a 3 m groundwater rise during storm surges. The design team used a 1.2 m diameter bored pile socketed 5 m into the Sherwood Sandstone Group to mobilise both shaft and base resistance. Without addressing the seasonal groundwater cycling through the underlying boulder clay, the long-term settlement could exceed 25 mm under service loads. Our approach couples effective stress analysis with monitoring of pore pressure dissipation during installation.
For urban sites in Liverpool where noise and vibration must be minimised, we design continuous flight auger (CFA) and rotary bored piles. Our methodology follows the effective stress approach in Eurocode 7, with shaft resistance calculated from SPT N-values using the Meyerhof correlation. We specify concrete strength C32/40 and reinforcement cages designed to resist lateral loads from adjacent excavations.
02
Driven Precast Pile Design
When the glacial till is dense enough to develop high end-bearing without excessive driving lengths, we use driven precast piles. We size the pile to a working load of 800–1,200 kN and check driving stresses using wave equation analysis. For Liverpool sites with cobble layers, we often recommend a reinforced concrete toe to prevent spalling.
This service complements our laboratory testing work for a complete project analysis.
Relevant standards
BS EN 1997-1:2004 (Eurocode 7 – Geotechnical design), ACI 543R-12 (Design, Manufacture, and Installation of Concrete Piles), BS 1377 (Field testing of piles under lateral loads)
Common questions
What is the typical cost range for pile foundation design in Liverpool?
The cost for pile foundation design in Liverpool ranges from £1,480 to £5,510, depending on the number of load cases, the complexity of the ground profile, and whether static load testing is required. This fee covers the geotechnical interpretation, structural design, and preparation of a pile schedule compliant with Eurocode 7.
How do you select the pile type for a site near the Mersey waterfront?
For waterfront sites in Liverpool with soft alluvium over dense till, we typically select CFA piles because they can be installed through the soft upper layers without risk of driving refusal. We also check the groundwater table's effect on concrete placement and specify a tremie pour if the water table is within 2 m of the pile toe. Driven piles are avoided here due to the risk of pile damage during driving through the soft layer.
What is the minimum embedment into the sandstone for a rock-socketed pile in Liverpool?
For rock-socketed piles bearing on the Woolton Formation sandstone, we require a minimum embedment of 3 m into the rock to mobilise both shaft and base resistance. The socket is designed using the Horvath and Kenney method with an unconfined compressive strength of the sandstone typically between 8 and 15 MPa. A 4 m socket is specified for piles working at more than 1,800 kN.
